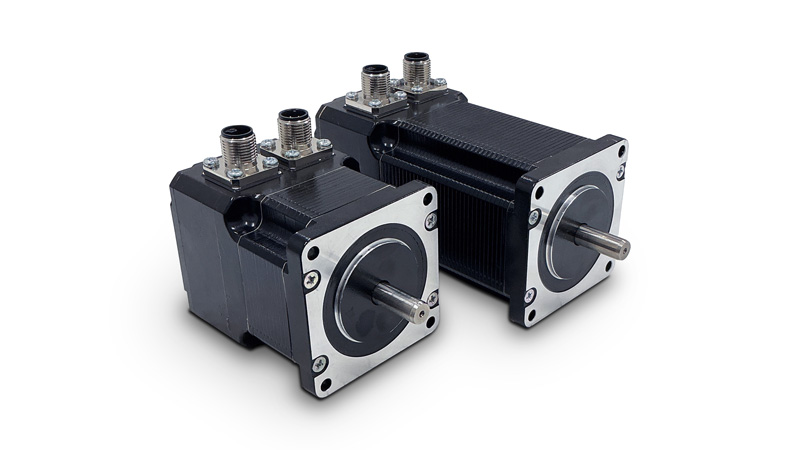

IP65 stepping motor with/without encoder
产品一览
| Model | Encoder | Step angle | Voltage | Current | Resistance | Holding torque | Rotor inertia | Mass | Length |
|---|---|---|---|---|---|---|---|---|---|
| Deg. | V | A/Φ | Ω/Φ | mN·m | g·㎠ | kg | mm | ||
| STP-60D1 | Optional | 1.8 | 6.88 | 2.5 | 1.1 | 1040 | 280 | 0.76 | 75.7 |
| STP-60D5 | Optional | 1.8 | 13.5 | 5 | 0.54 | 3200 | 920 | 1.53 | 117.2 |
Encoder specifications
| Output type | Incremental |
|---|---|
| Resolution | 2 to 4096 ppr |
| Output signals | A, B, Z phase |
| Max. sink current | 20 mA |
| Output voltage (high level) | 2.4 V min. |
| Output voltage (low level) | 0.4 V max. |
